Fiber laser marking machine

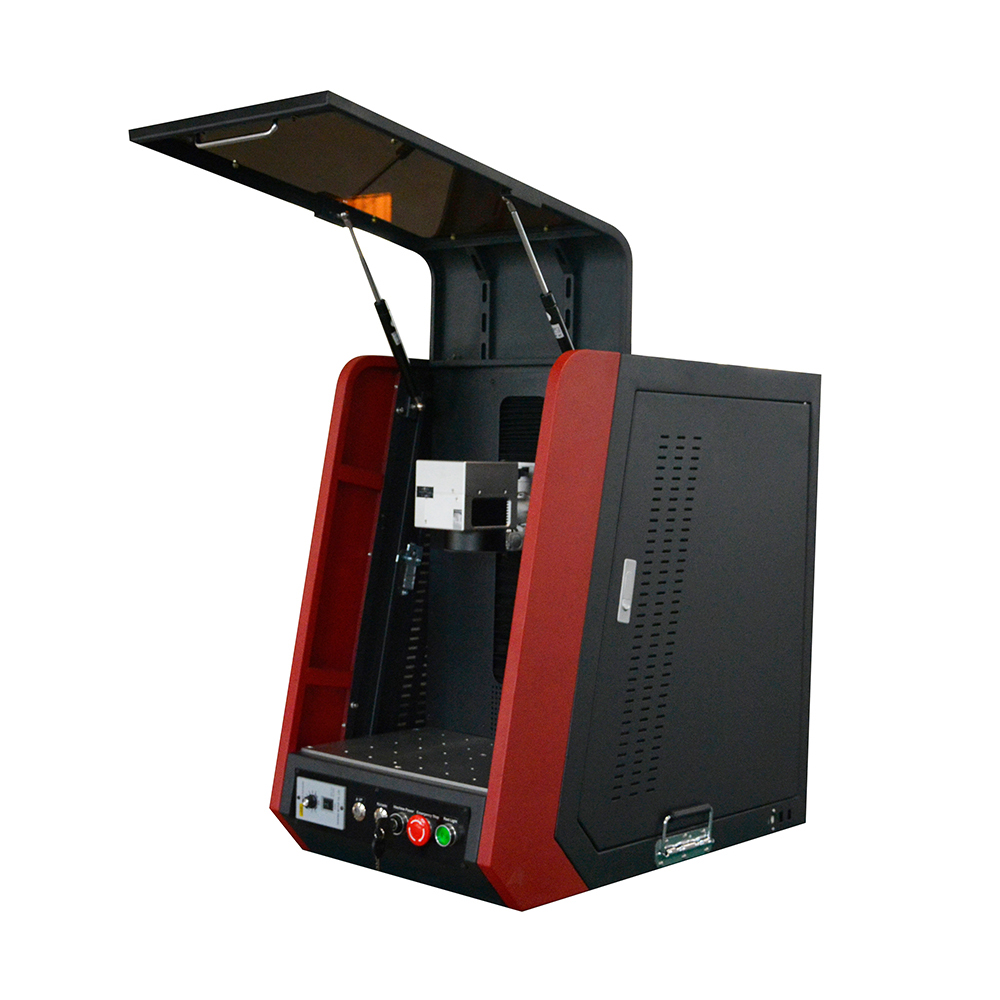

AL-YLP20W/30W/50W/100W Desktop optical fiber marking machine

undefined

Machine Production:

1. Marking Area: 110*110mm, 175*175mm, 200*200mm, 300*300mm.However, larger work-piece could be marked by our customized electrical XY working table.

2. Best Marking Effect: Owning to the original Raycus laser source technology, the laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker is especially good for large size seamless splicing image marking.
3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.
4. Long lifetime: the lifetime can reach 80,000 - 100,000hours.
5. No consumables except electricity.
6. Free Maintenance.
7. Easy operation: Machine is installed well.We will supply the installation training video for our dear customers to install laser marking machine.



Application:

Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, Medical Instruments etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, Gold Silver Brass Jewelry etc.
Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.



Marking Materials:

Fiber laser marking machine could work perfectly for most metal marking applications, such as Gold Silver Brass Jewelry, Aluminium, Stainless Steel, Iron etc.

Especially the 50w and 100w laser marking machine could cut small gold silver brass jewelry, very popular now.



Parameters:

Model

AL-YLP20W/30W/50W/100W

Laser source

Raycus/JPT/MAX

Laser Type

Fiber laser

Positioning Way

Red light

Laser power

20W/30W/50W/100W

Laser Module Life

100000 hours

Weave length

1064 nm

Cooling Style

Air cooling

Marking area

110mm*110mm--300mm*300mm

Total power

≤500W

Marking speed

7000-12000mm/s

Operating Voltage

220v /110v 50hz

Marking depth

0.01-2mm

Supported Windows

Windows XP,7,8,10

Repetition Precision

0.001mm

Certificate

ISO, CE

Minimum Character

0.2 mm

Control software

EZCAD 2.14.11

Minimum Line Width

0.01mm

Supported Format

PLT, DXF, DST, AI, SDT, BMP, etc.



Samples:
